LG batteri LI-IO RESU FLEX 8.6 24solar
The LG RESU FLEX 8.6 high-voltage battery consists of 2 battery modules, which together reach a net capacity of 8.6 kWh, and a battery protection unit. The system can be subsequently expanded by adding additional RESU FLEX modules.
Options
Variants that match your options:
Price
Not available
Price
In stock: 4
- Secure payment by card.
- E-mail us, we reply quickly!
- Pay securely with Paypal.
- Fast and safe Transport.
Description
Article no.: RESUFLEX08.6
LG LI-IO battery storage 8.6 (8.6 kWh)

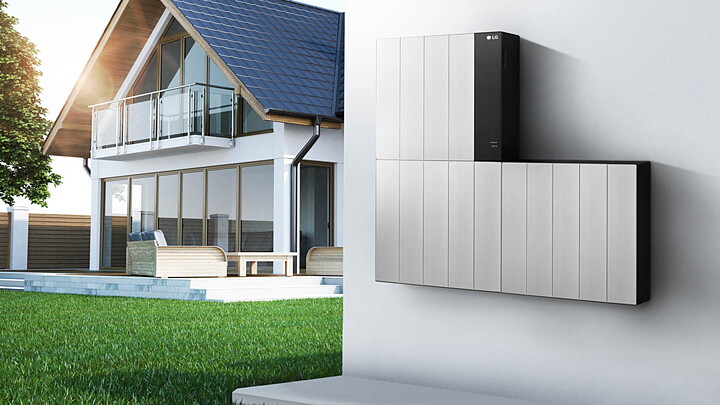

The RESU Flex 8.6 high voltage lithium ion battery is suitable for wall and floor mounting and is modularly expandable up to a maximum of 4 battery units. It is compatible with the RESU Monitor and achieves a usable storage capacity of 8.6 kWh.
In addition, the battery storage has a protection class IP55. This means that the LG RESU Flex 8.6 can also be used outdoors.
Compatible with:
SMA Sunny Tripower SE Hybrid Inverter
Fronius Symo GEN24 3-phase hybrid inverter
Kostal Plenticore PLUS 10 - PV-Hybrid inverter
GoodWe ET series
Technical data:
Usable battery capacity: 8.6 kWh
Max. charge/discharge power: 4.3 kW
Max. charge/discharge current: 22 A
Communication: CAN, RS485
IP protection class: IP55
Operating temperature charging: 10 - 50 °C
Operating temperature discharge: -10 - 50 °C
DC protection: circuit breaker
Interface: LEDs for normal and fault operation
Dimensions: 665.2 x 665.2 x 148.4 mm (H x W x D)
Weight of battery unit: 48.9 kg
Control unit weight: 16.5 kg
The set consists of:
2x LG RESU FLEX 4.3 kWh battery modules
1x LG RESU FLEX battery protection unit
